Brushless yuntai 2 axis CNC metal

Item description: GOPRO3 / GOPRO4 brushless yuntai 2 axis CNC metal.

T brushless motor models: 2204/100T : 2 only

Working voltage : 2-6S (5 to 28V/)

Working current : 240MA

Joystick control Angle: PITCH:-90 +90 degrees/ ROLL:-45 +45 degrees

Switch control mode: ROLL/ PITCH

Size: 80*65*80mm (L*W*H)

Weight : 98g

Scope of application: GOPRO series is compatible with the camera.

Electrical connections: JST and HX

How to install:

1.Remove vibration ball,open at the mounting plate

2.Lock mounting plate with screws at the bottom of the craft

3. Install the damping ball

4.Install the camera, with a girdle bond compact camera

Directions for use

Be sure to instat the camera before power on, the camera bandage must be tightened, otherwise it will not stop shaking, burning the controI board. Please suspend the platform before power on. After the power is switched on,the platform will automatically balance and return to normal. The red light is long and bright for the power

indicator lamp,and the long and bright yellow lamp is bright.

The roll and pitch motors can be controled through the recever or other separate PWM channels.

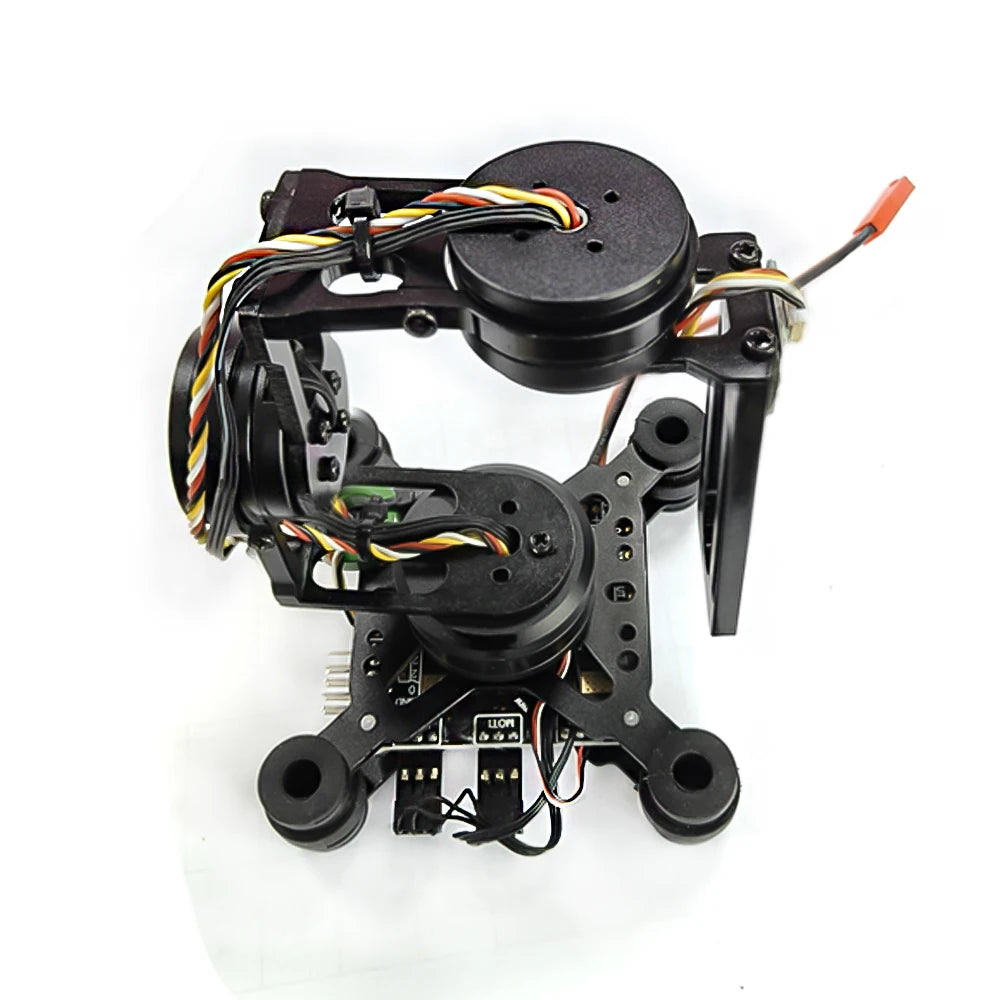

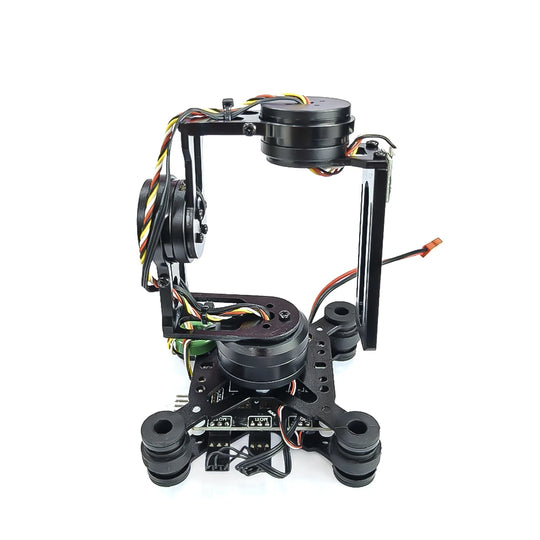

Brushless yuntai 3 axis CNC Metal

Item description : GOPR03 / GOPRO4 brushless yuntai 3 axis CNC metal.

Motor models : 2206 /100 T brushless motor : 2 only ，2805 /100 T brushless motor :1 only.

The driver bodrd : STORM32BGC

Firmware version : o323bgc - release - v090

Hardware version : V130

Working voltage : 3-4s (11.1 to 16.8 V)

Working current : 350 ma

Joystick control Angle: PITCH : 25+25 degrees/ROLL : 25+25 degrees/YAW : +90 degrees-90 degrees

Switch control mode: lock/follow

Size: 80*80*100mm(L*W*H)

Weight:180g

Scope of application: GOPRO series is compatible with the camera.

Electrical connections: JST and HX

How to install:

1.Remove vibration ball, open at the mounting plate

2.Lock mounting plate with screws at the bottom of the craft

3. Install the damping ball

4. Install the camera, with a girdle bond compact camera

Directions for use：

Packed the camera (be sure to install cameras, otherwise will be shaking),after electrify stable yuntai about 20 seconds(don't be shaking yuntai, keep yuntai hangs,) from the ground, after hearing a sound,can be normal use.

1）Can control the pitch by a receiver or other individual PWM channels

2）You can set the following mode or lock mode

3)  Can set the Angle mode or speed

Metal 3-Axis Gimbal  Parameter

Weight: 156g (grams)

Accuracy: 0.09 °

Working voltage: DC 10-16V

Control mode: PWW signal controls yaw and pitch angles

Balance and stability angle: yaw angle 360 °/pitch angle -90 ° to+45 °

Supported camera types: sports camera, GoPro3, GoPro4, mountain dog, and other cameras weighing 30-110g.

Gimbal size: 80 * 80 * 80MM (L * W * H)

Power connector: JST wire

Instructions

1.Before powering on the gimbal, please install a camera weighing between 30 and 100 grams. The camera must be securely fixed to the gimbal; otherwise, it will keep shaking.

2. Install the camera and adjust the center of gravity to keep the gimbal suspended. Use a 10-16V power supply to power the gimbal, and it will automatically balance in about 5 seconds after being powered on.

3. The pitch and turn control of the gimbal is achieved by inserting blue and white DuPont wires into the receiver channel and selecting the corresponding channel. The receiver sends PWM signals to the gimbal. Note that the receiver should also be connected to ground and power.

◆ Introduction

This all aluminum alloy three-axis gimbal is specially customized for aerial drones and can be equipped with a motion camera weighing 30-110 grams. The camera has a maximum size of 30 wide, 50 high, and 70 millimeters long, and uses three brushless motors for high-precision and stable gimbal, making it easy for you to achieve ultra stable aerial photography.

The gimbal circuit control system adopts an open source solution, and professionals can adjust the gimbal parameters by installing the CP2102 driver program, connecting it to a USB port, and downloading the SimpleBGC_ GUl_2_40 software package. (Non professionals are not recommended to adjust the parameters of the gimbal by themselves, as it may cause the gimbal to malfunction.)

Disclaimers

Before using the three-axis cloud platform, please carefully read the instructions to understand the specific usage steps and precautions. Understand the usage method and application scope of the product.
